PROTOTYPING
AND LOW-VOLUME
SERVICES.

Frank Dudley Limited (FDL) provides a specialist metal prototyping service for customers who need to validate designs, processes and performance before committing to full production tooling. Our prototyping service reduces risk, shortens development cycles and ensures every component is right first time when scaling up.

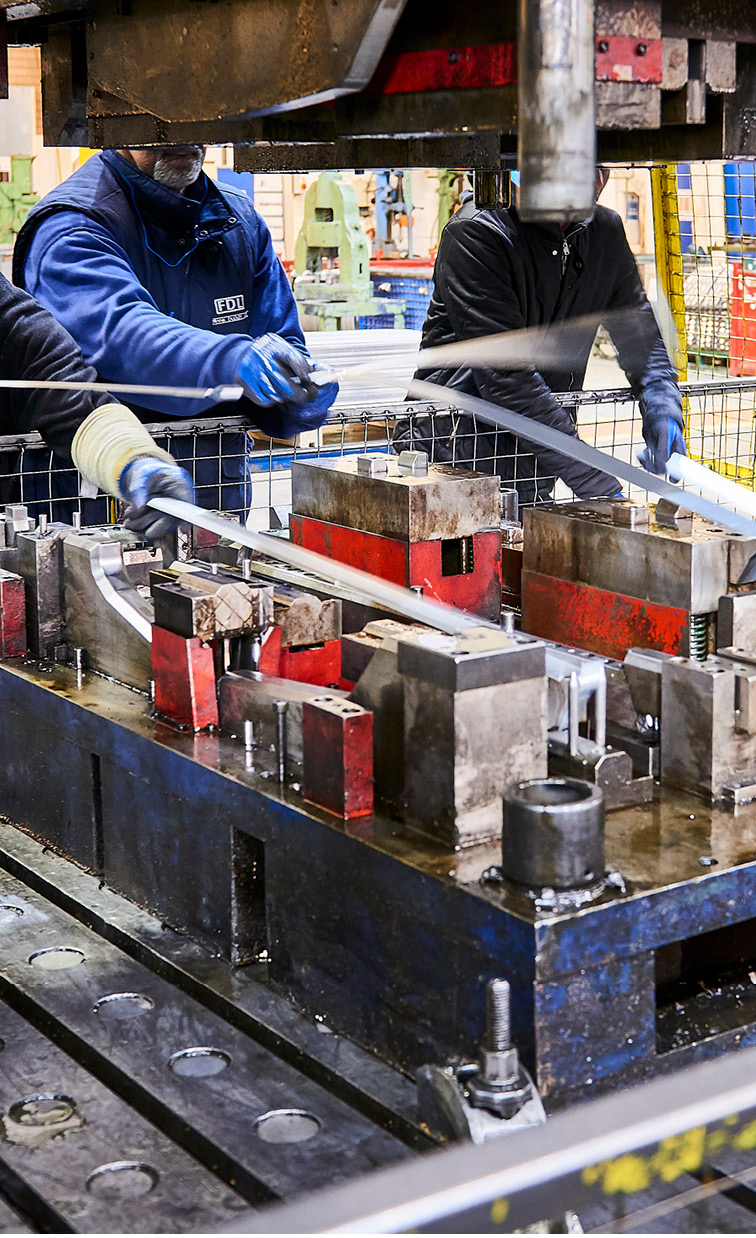

Our flexible approach covers everything from one-off components and small batch samples to pre-production runs – using soft tooling, small press fabrication and hand press techniques to replicate production intent as closely as possible at every stage of development.

Whether you are an OEM, a Tier 1 or Tier 2 supplier, or a smaller business requiring low volumes, our prototyping teams are experienced in supporting a wide range of applications and industry requirements.

Speak to our prototyping team

PROTOTYPING EXPERTISE

FLEXIBLE PROTOTYPE AND
LOW-VOLUME MANUFACTURING

Our prototyping service is designed to bridge the gap between design concept and full production. We support pre-production validation, first-off approvals and short-run manufacturing during development and transition phases – keeping your programme on track from day one.

We also support post-tooling scenarios where original tooling has been lost, modified or is no longer viable, providing small batch production to keep your supply chain moving without delay.

Our prototyping services include:

Materials: stainless steel, aluminium and mild steel.

  • Rapid prototyping models
  • Single components and one-off parts
  • Low-volume batches and small batch samples
  • Pre-production runs and process validation
  • Post-tooling bridging production

Where additional specialist capability is required, we work with trusted partners in prototype and development engineering to access the widest possible range of manufacturing options for your project.

COST-EFFECTIVE PROTOTYPE TOOLING
AND PRODUCTION SERVICES

FDL’s prototyping services offer a practical, cost-effective route from design concept to production-ready components. In many cases, prototype tooling can be developed in parallel with, or transitioned directly into, full production tooling – helping to reduce lead times and overall development costs.

We produce prototypes in stainless steel, aluminium and mild steel, with the option to work with additional materials subject to availability. All prototype components can be finished to specification to support form, fit and function validation.

Quality and process control remain central to our prototyping work – particularly for automotive and other high-specification sectors where approval and validation requirements must be fully supported.

Rapid turnaround from single prototypes to pre-production validation runs.

Soft tooling and flexible manufacturing methods to reduce development costs.

Full support for PPAP, design approval and bridging manufacture requirements.

PROVEN METHOD

HOW OUR
PROCESS WORKS

From initial brief to approved prototype, every project follows a clear, low-risk process designed to give you full confidence before full production begins.

Initial review and feasibility

Sharing drawings, volumes and requirements to confirm technical and commercial fit.

Tooling design and optimisation

Engineering the right tooling approach to meet quality, cost and lead-time targets.

Samples, qualification and approval

Producing trial parts, supporting PPAP and refining the process where needed.

Series production and ongoing optimisation

Running stable production with continuous monitoring and improvement.

See our full step-by-step process

CASE STUDIES

PROTOTYPING
IN ACTION

Proven results from real
customer projects using our
pressing expertise.

READY TO TALK ABOUT
YOUR PROTOTYPE?

Speak to our prototyping team today. Call us on 0121 452 8500 or submit your requirements below and we’ll provide expert advice and a competitive quote.
